Hypex NC2k Premium Monoblock Amplifier Apollon PNC 2k
PNC2k Premium Monoblock Amplifier
Hypex NC2k based amplifier
Powerful • Musical • Detailed
HYPEX NC2k BASED MONOBLOCK AMPLIFIER
POWERFUL AND PRECISE
Apollon Audio PNC2k Monoblock Amplifiers are built around the award winning Hypex NCore NC2k amplifier module. Delivering plenty of power and amazing detail for the most demanding studio or audiophile speakers with amazing clarity and brutaly honest linear sound.
SPACIOUS, AIRY SOUND, ABUNDANT IN VIVID DETAIL WITH OUR CUSTOM INPUT BUFFER BOARD WITH WEISS OP2-BP
The Apollon Audio PNC 2k Monoblock Amplifier is exceptionally fast, uncommonly clean, and exceedingly musical with articulated, deep, tight, and powerful bass. This is how the amplifier can be described in one sentence and we have accomplished that with using a linear power supply to power the highly acclaimed Weiss OP2-BP Op Amp that is incorporated on our custom input buffer board.
Benefits of the Apollon Audio Hypex PNC2k Premium Dual Mono Amplifier:
Ultra Low Distortion
The Apollon Audio PNC2k Premium monoblock amplifier delivers exceptional performance with its ultra low distortion (THD+N – 0.0008 %) as a result of the Hypex NC1200 amplifier module combined with our custom input buffer boards.
Balanced & Single-ended Input
with Gain Selection

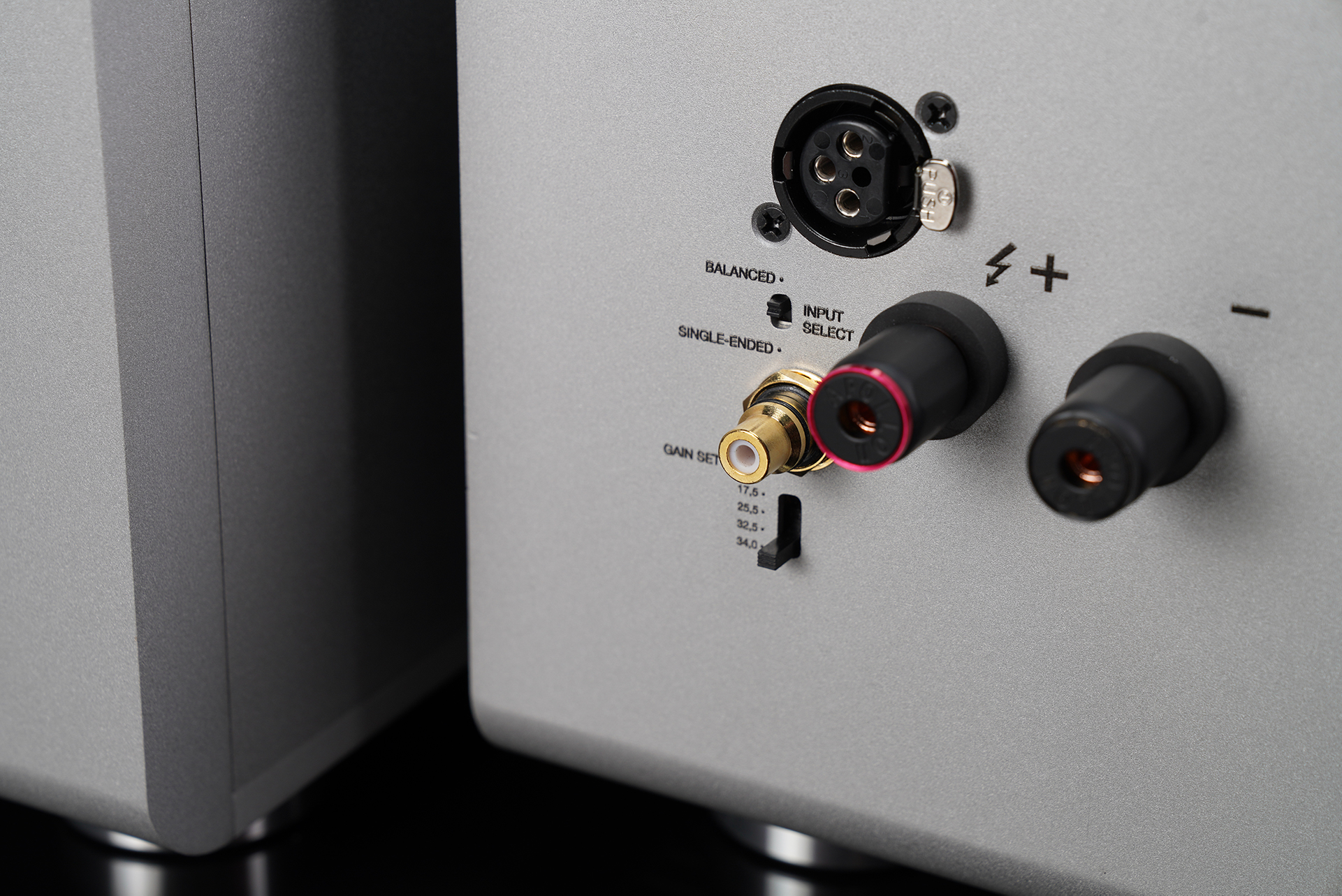

The signal to the amplifier can be provided by using XLR balanced or RCA single-ended cables. The custom input buffer board offers 4 different input gain settings levels.
Weiss OP2-BP Combined with a Linear Power Supply
Linear Power Supply Custom designed linear power supply that provides power to the Op amp and modulator stage.
Weiss OP2-BP Operational Amplifier
Weiss OP2-BP OP Amp for clean, undistorted and brilliant sound

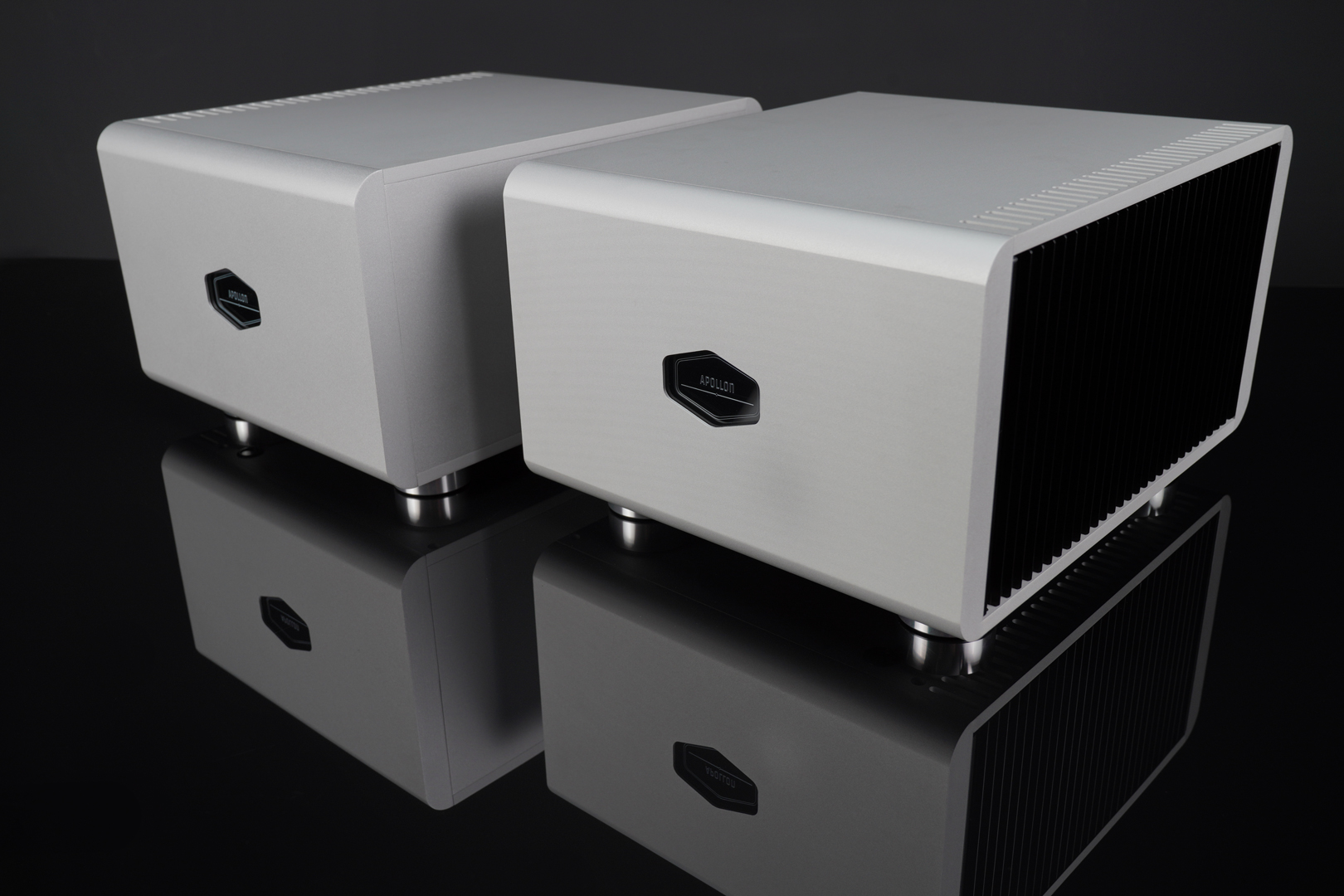

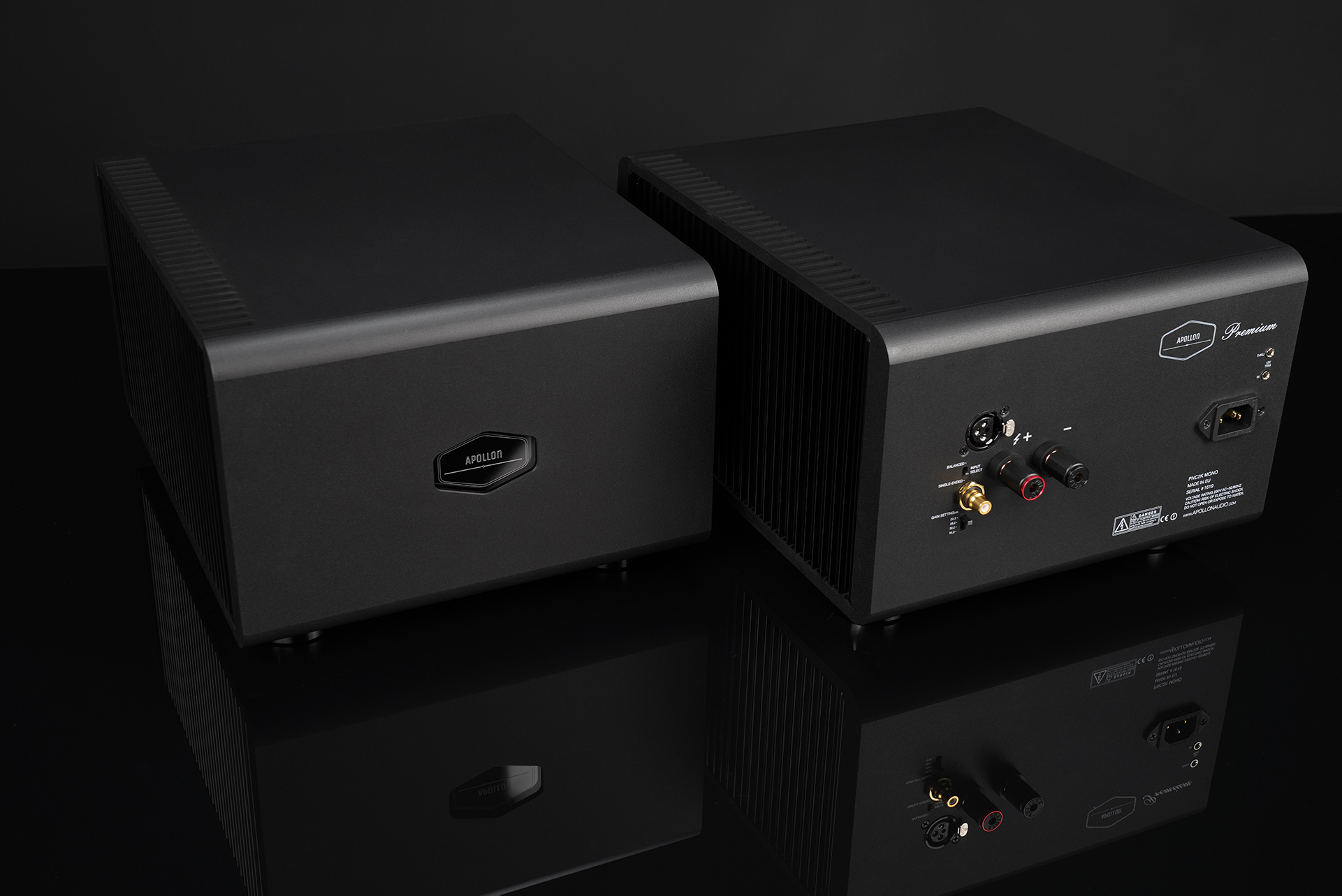

Exceptional Chassis Design
The chassis is custom machined from solid aluminium. 10mm thick walls and 8mm thick lid and bottom. For improved aesthetics we have designed the chassis in such a way that there are no screws visible when you look at the amplifier as they are only on the bottom plate. The aluminium feet provide isolation and absorption from the ground plane.

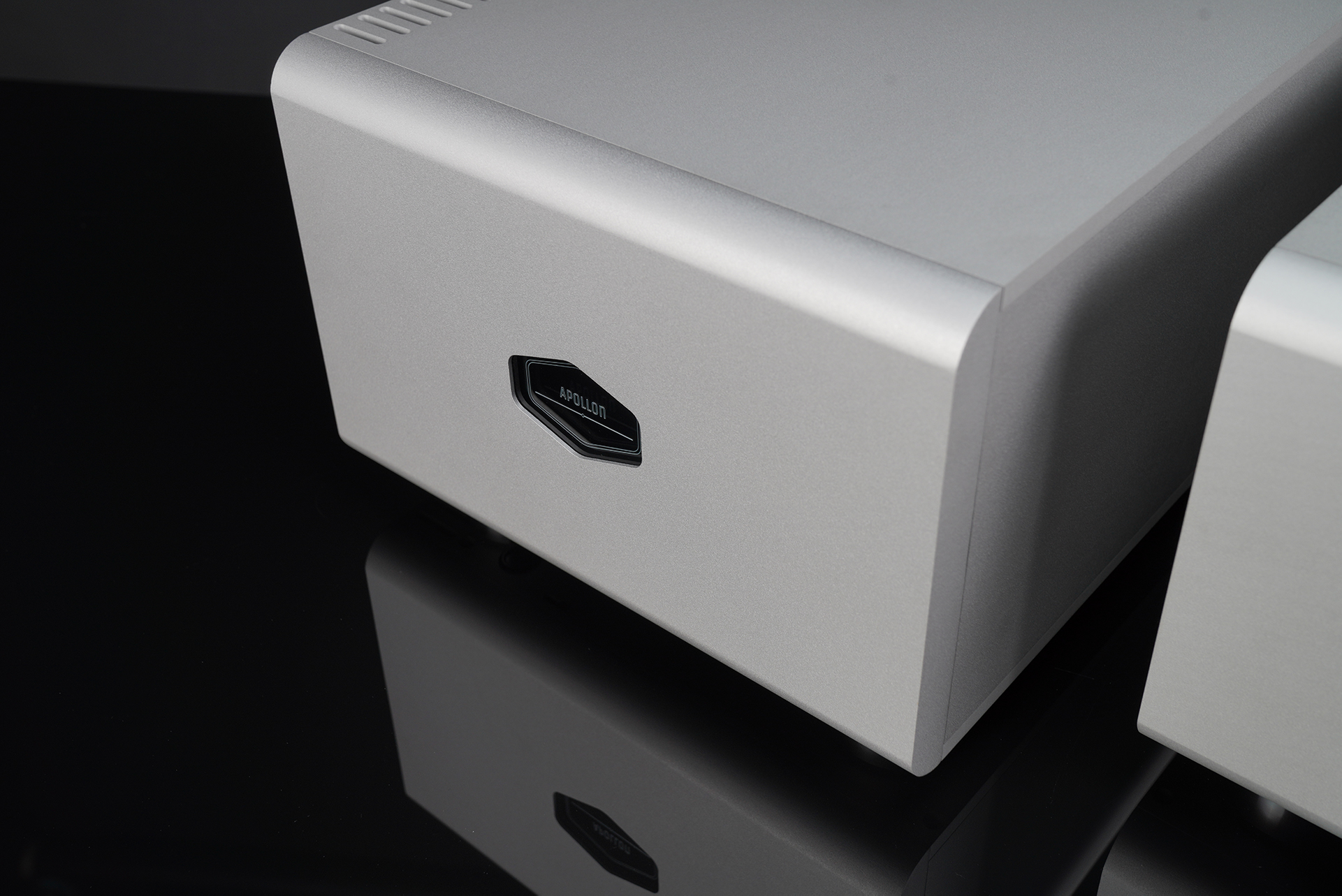

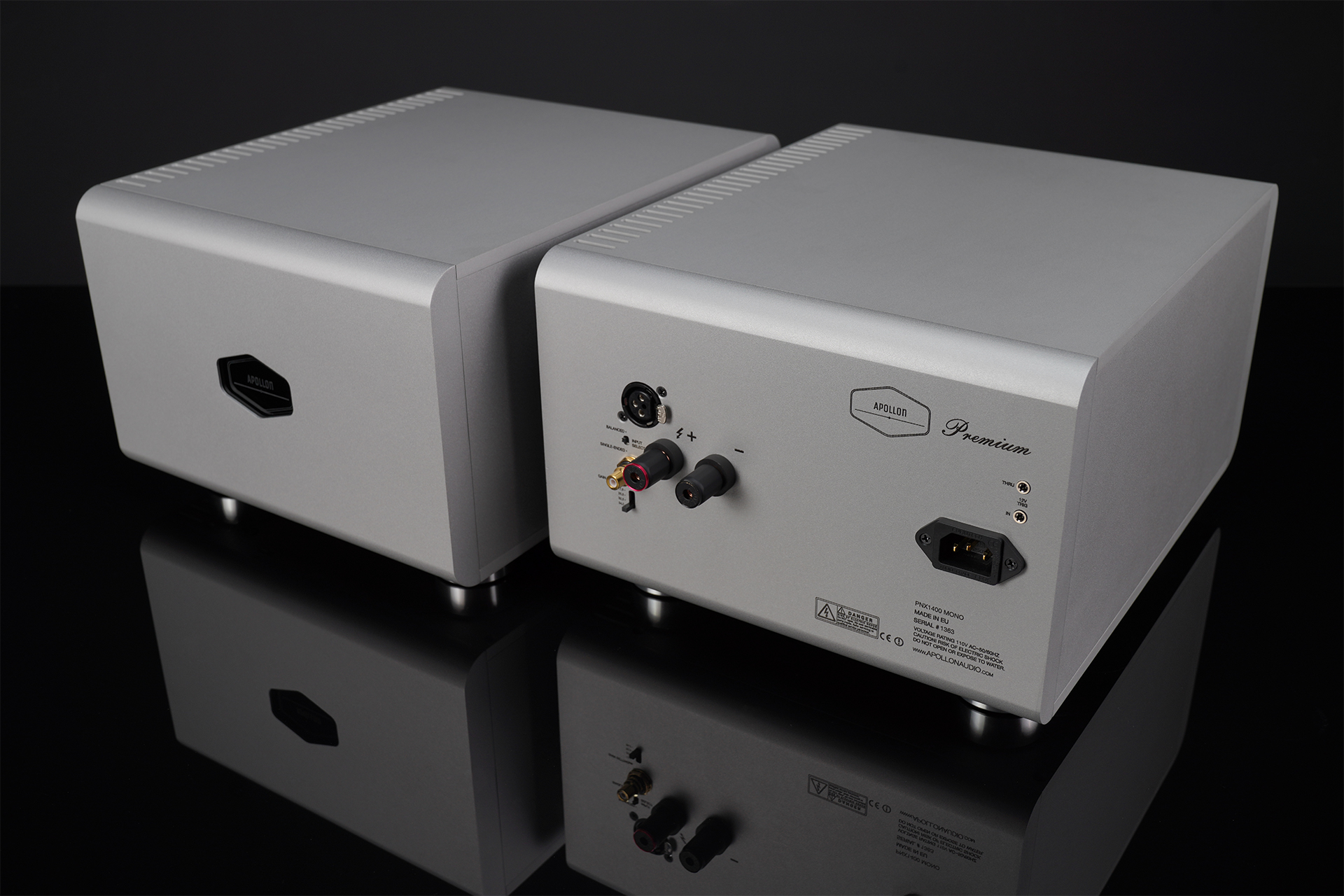

The chassis is executed in a very tasteful piano black color (available in pearl white, silver metallic and custom colours). It is spray painted rather than anodised since paint is a softer, more absorbent material. We also offer it in anodised finish if the client wishes.

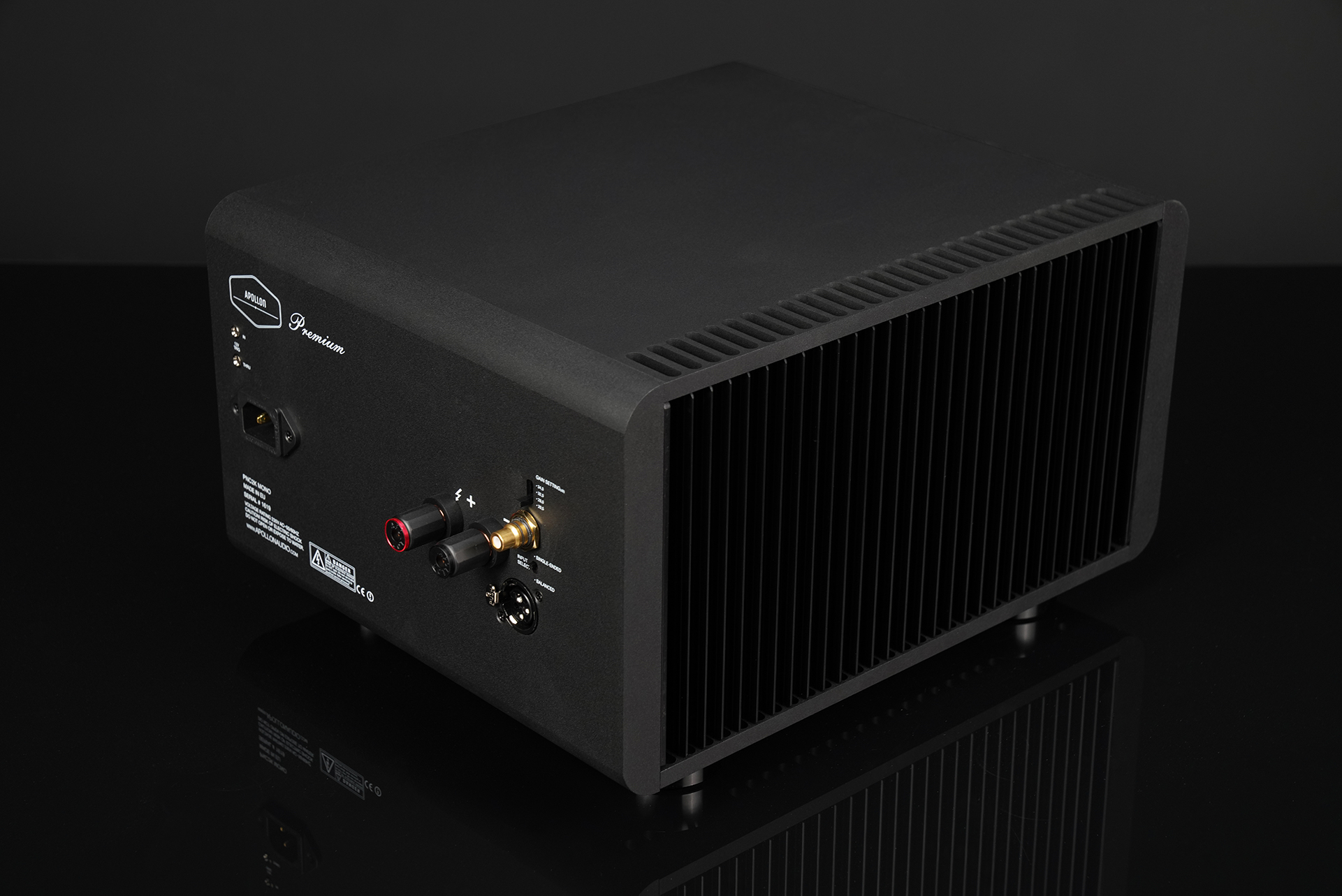

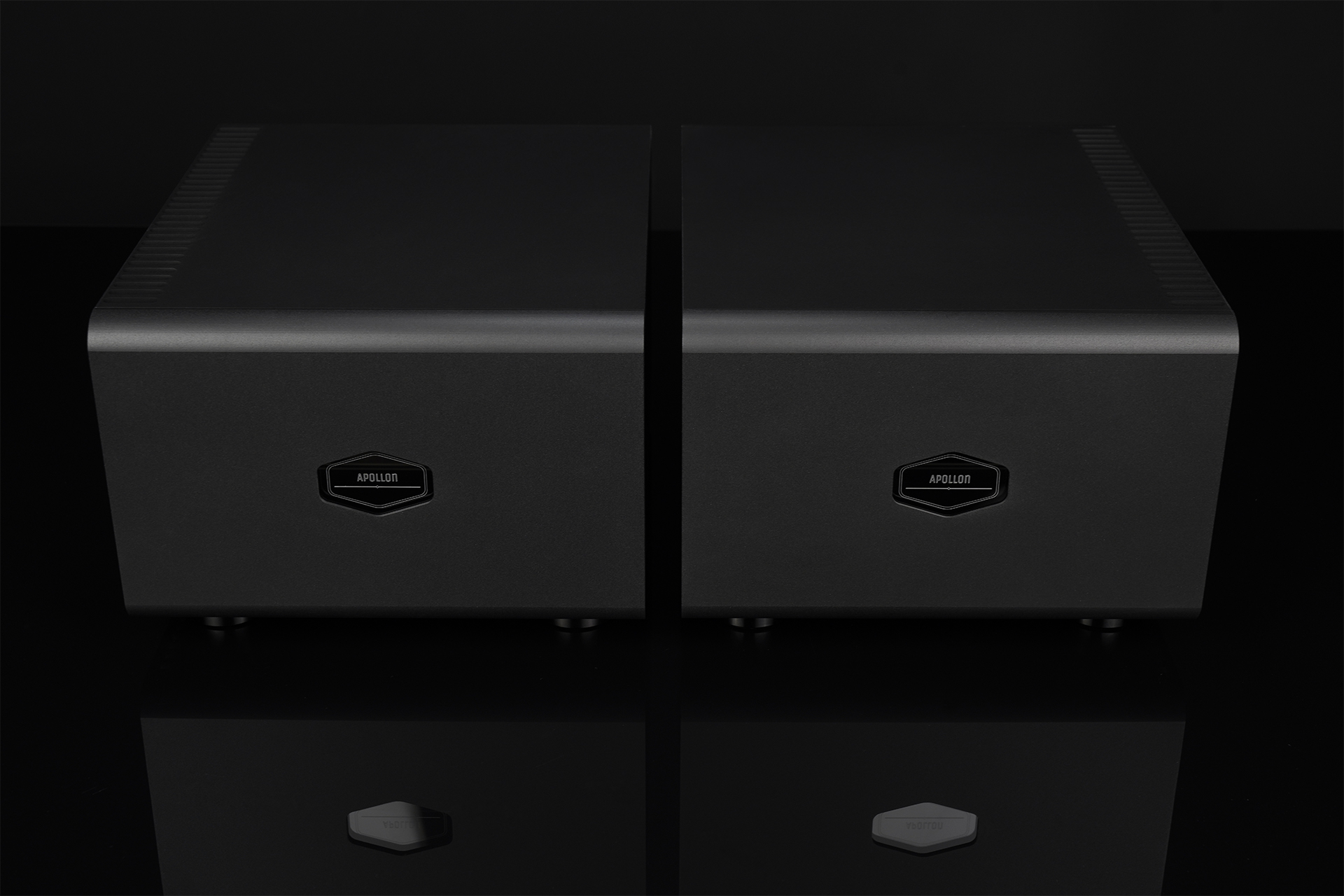

A very special feature is the backlit glass plate with the engraved Apollon mark and the large heatsink that absorbs the heat from the NC2k module and helps with keeping the amplifier module running on normal operating temperature even under high loads.
True Mono Design:
High Power Output:
LAYOUT AND DESIGN
The PNC 2k amplifier is hand-built with highest precision using only highest quality components. To connect your speakers we use custom built Apollon Pure OFC Copper Binding Posts that are internally connected to the amplifier with Pure OCC 12AWG Copper Output Wire and soldered with silver solder. The input connectors are Neutrik high quality silver plated XLR sockets. The amplifier has a soft start function and it is turned on with a hidden push button switch on the bottom lid.
The monoblock amplifier contains one Hypex NC2k module coupled with our Apollon Audio PNC custom input buffer board with the acclaimed Weiss OP2-BP Op Amps onboard. The PNC2k monoblock amplifier is powered with one SMPS Hypex power supplies boasting 3000 Watts of power. The standby control module is powered with a low-voltage power supply unit.
Providing low ripple and ultra low noise power to the Weiss OP2-BP Op Amps is possible with our custom designed linear power supply with large Nichicon capacitors and Discrete Voltage Regulators that play a key role for ultra low noise and fast transient responses on our custom input buffer boards for the Hypex NC2k based amplifier. They are responsible for improved low level listening ability, far superior 3D soundstage and high frequency details. The difference is mostly noticeable at higher volumes, where the clarity remains on higher levels and with ample details and dynamics even at low listening levels.
WATT @ 2 OHM
WATT @ 4 OHM
WATT @ 8 OHM
Low Distortion: THD+N – – 0.0008 % 20Hz-20kHz
Gain settings: 12,8/20,5/27,5/29 dB
High Input Impedance: 100K
Ultra High Damping Factor
High Current Output : 48A
Case Dimensions: : 350mm depth x 205mm height (with feet) x 280 mm width
Amplifier Weight: : 14kg

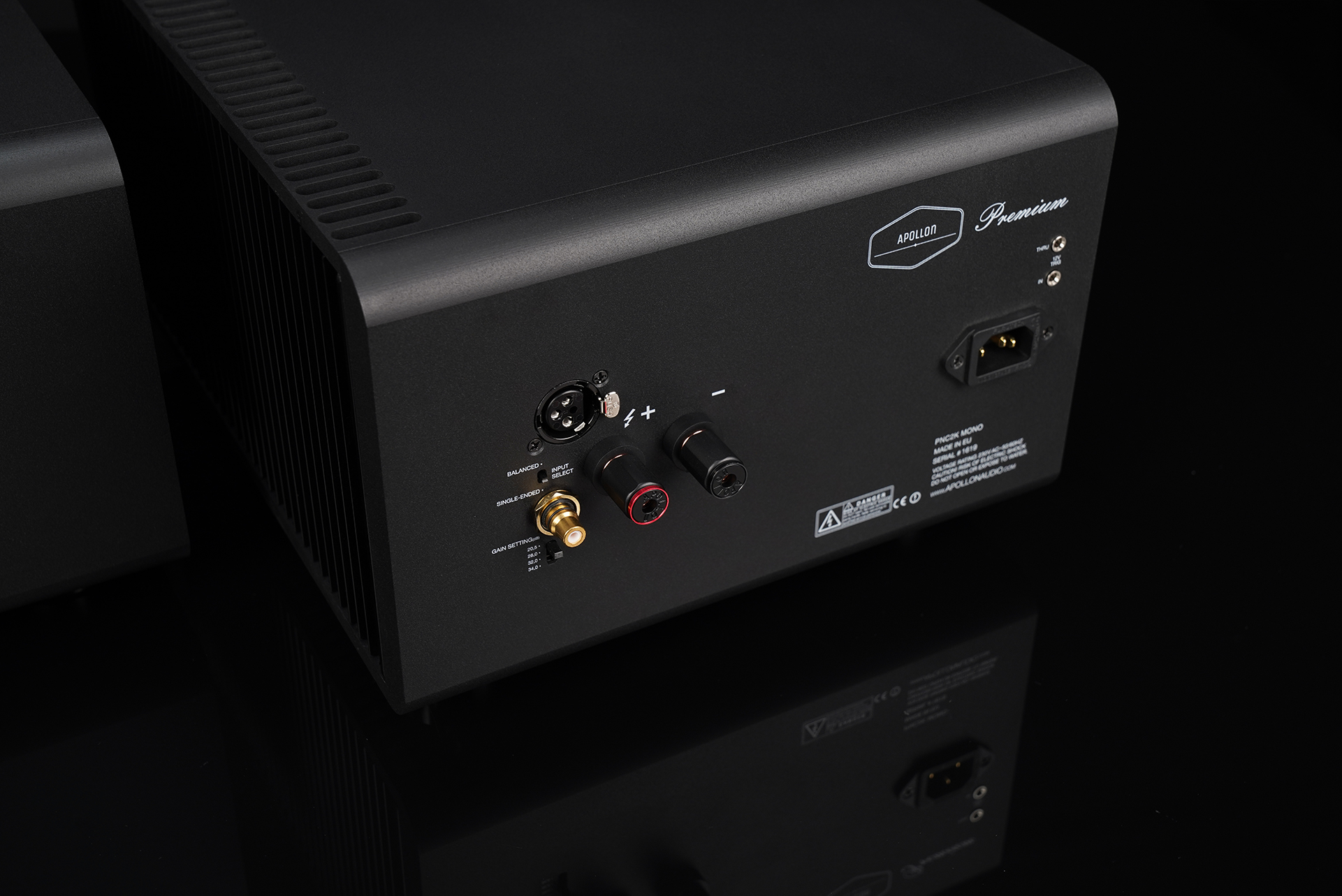

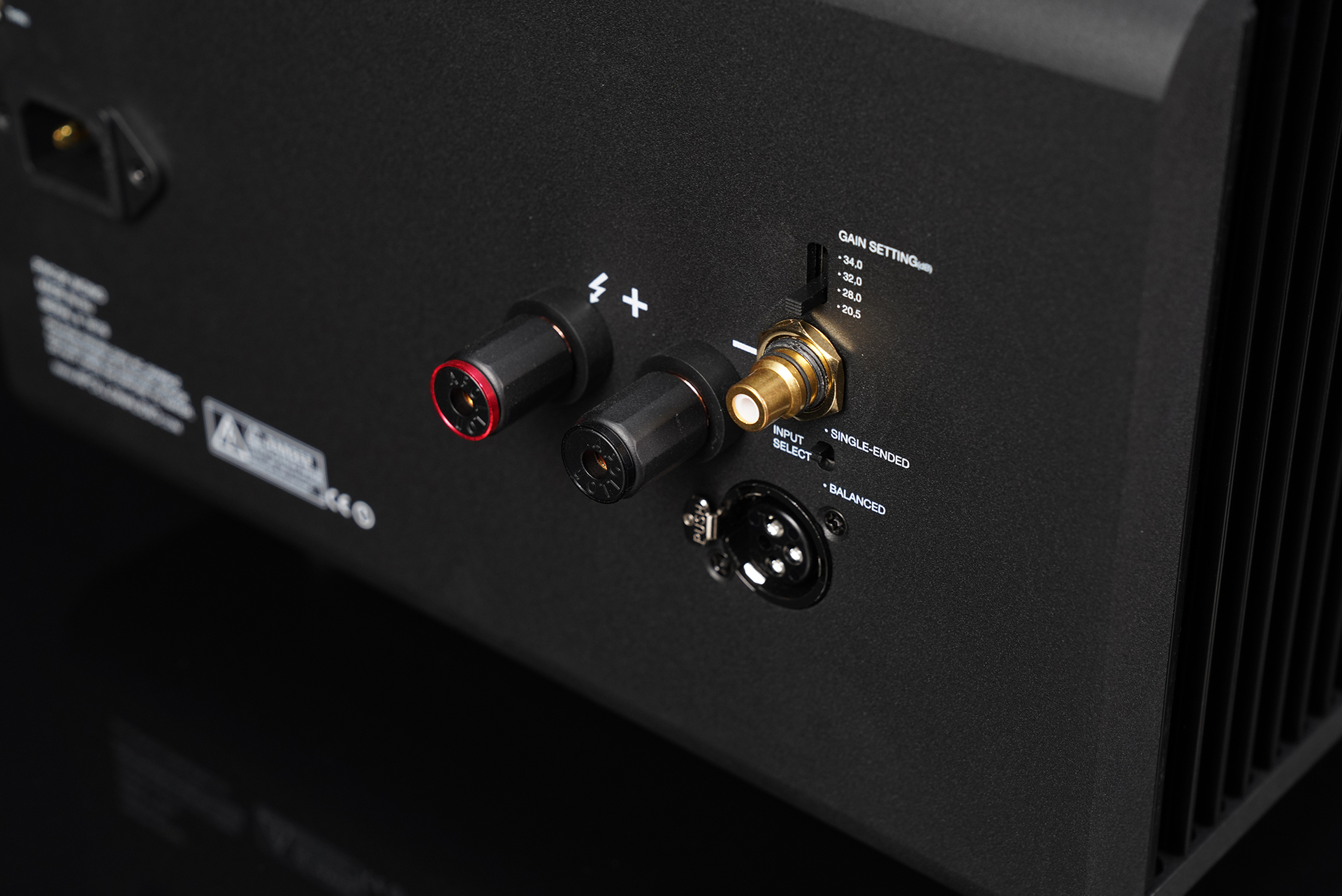

SPEAKER OUTPUT CONNECTION
By default we use custom built Apollon Pure OFC Copper Binding Posts that are internally connected to the amplifier with Pure OCC 12AWG Copper Output Wire and soldered with silver solder. They accept banana plugs, spades and bare wire. .
Why Choose The Apollon Audio Hypex PNC2k Premium Monoblock Amplifier
• Global Shipping: We deliver our high-end amplifiers to customers worldwide, ensuring everyone can experience top-notch audio.
• 100% Satisfaction Guarantee: If you're not completely satisfied with your purchase, we offer hassle-free returns and exchanges.
• Expert Customer Support: Our knowledgeable team is always here to assist you with any inquiries or product-related advice.
• Unmatched Craftsmanship: Every Apollon Audio Hypex PNC2k Premium Amplifier is meticulously handcrafted with unwavering attention to detail. Our team of passionate audio enthusiasts ensures that each amplifier meets our strict quality standards, delivering unparalleled performance and reliability.

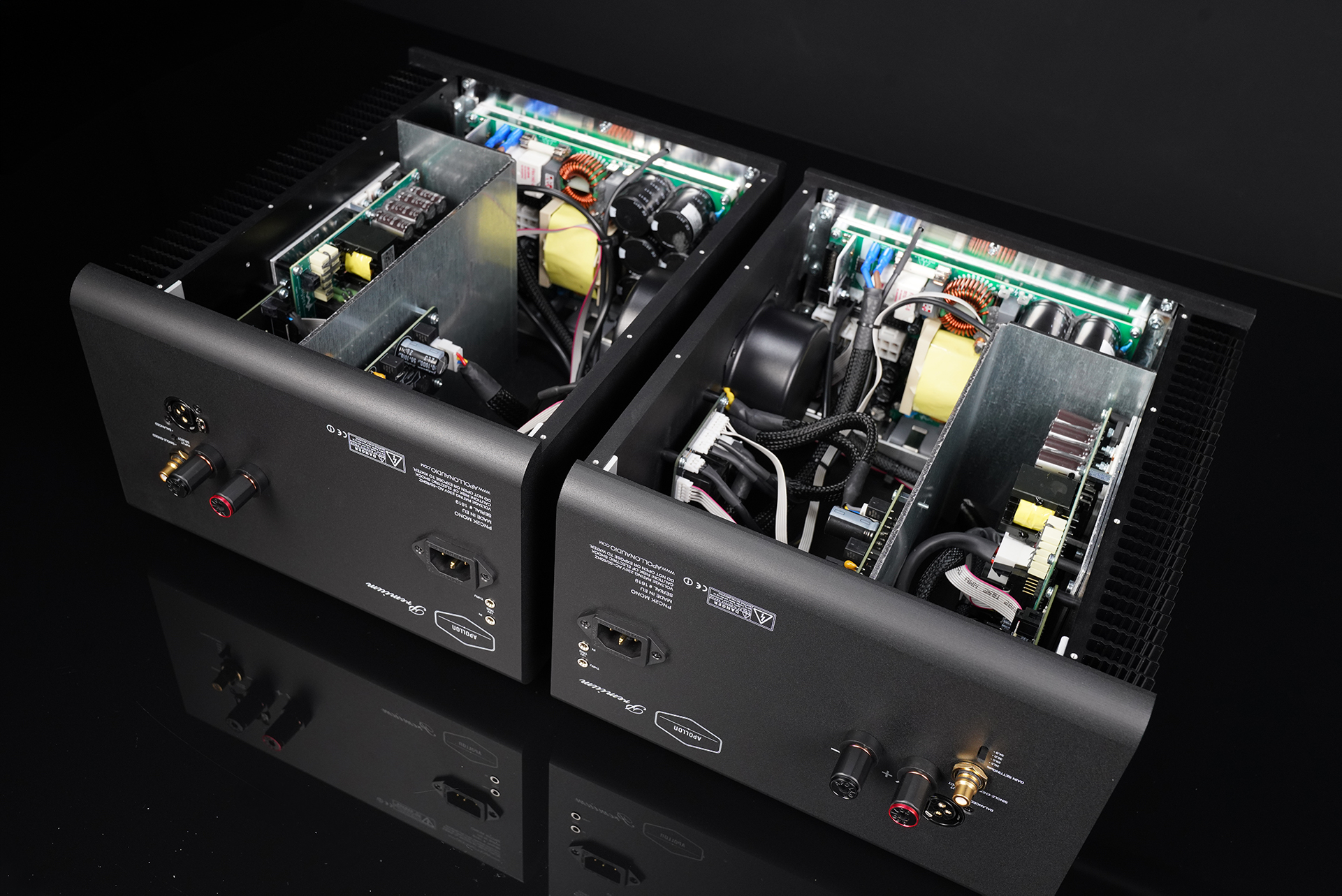

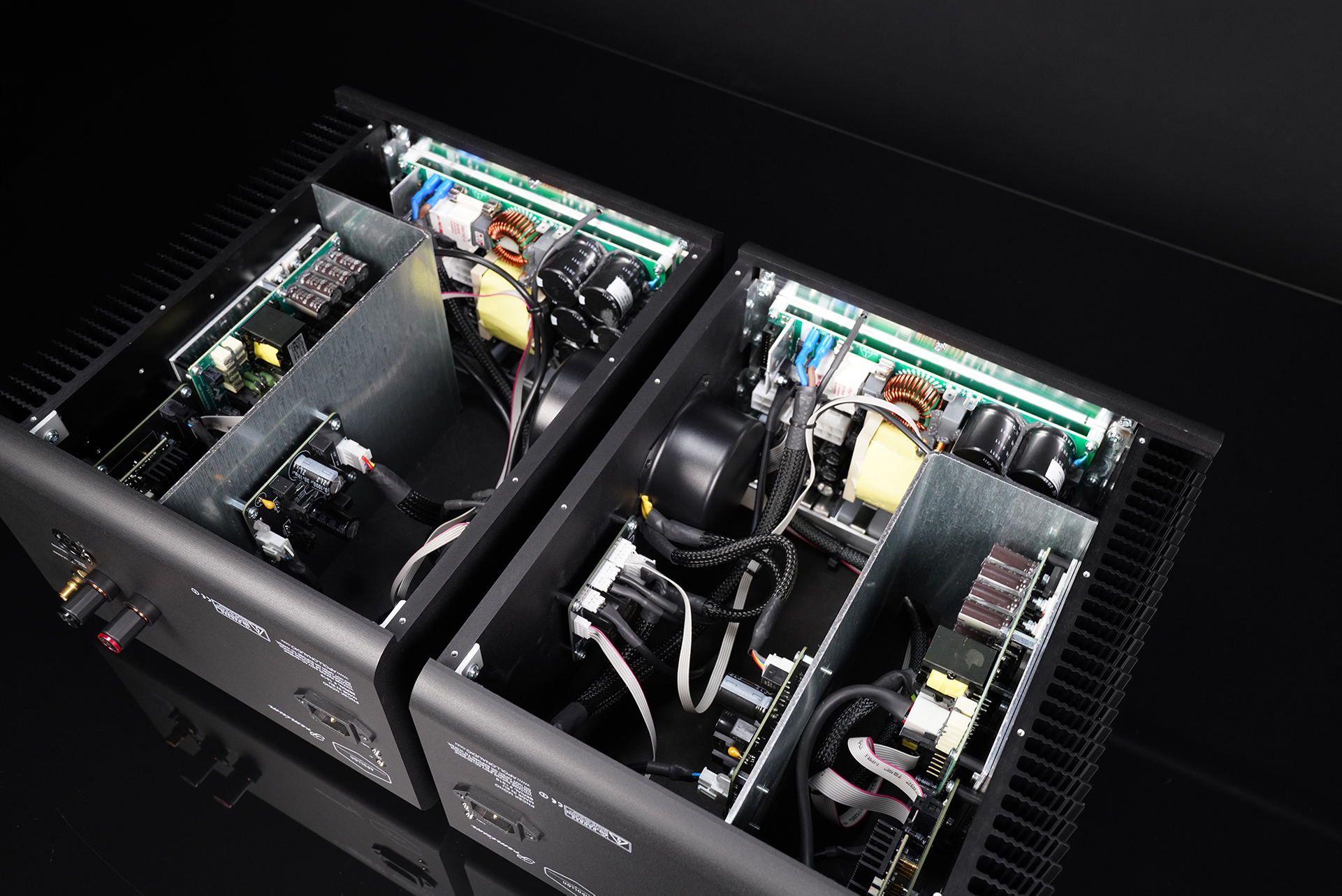

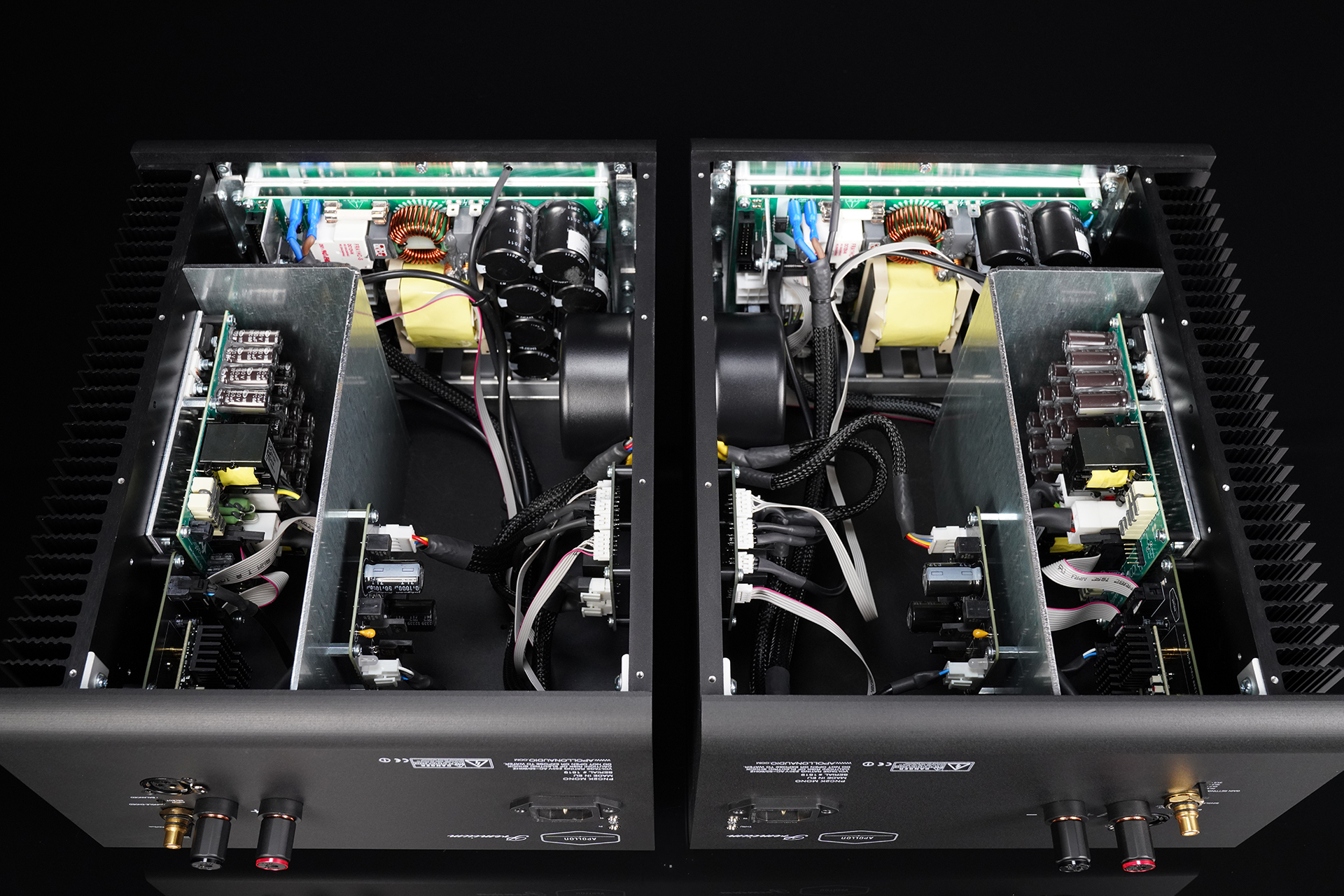

What is inside the Apollon Audio Hypex PNC2k Monoblock Amplifier:
Hypex SMPS3kA700 (1 pcs.)
Hypex NC2k NCORE amplifier (1 pcs.)
Apollon Audio PNC Input Buffer Board with Weiss OP2-BP op amps
Apollon Control Board for standby control
Linear Power supply
Neutrik silver plated XLR line input socket
Gold plated RCA input with selector switch
Apollon OFC Binding Posts (2pcs.)
Pure UP-OCC 12AWG Solid Copper Speaker output wire
12V Trigger with passthrough for wakeup from standby

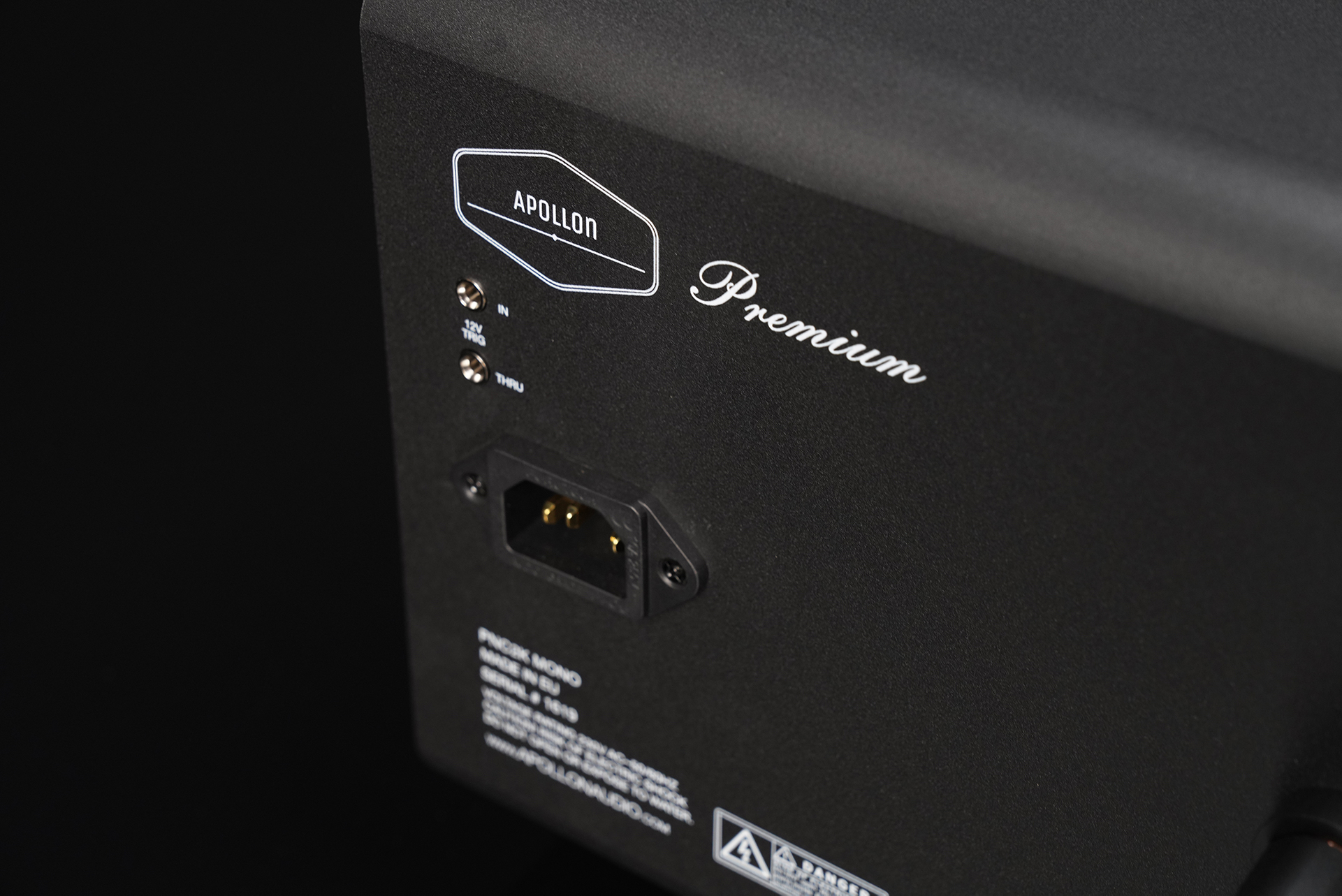

Furutech FI-06 mains input socket
Aluminium enclosure with anti-vibration aluminium feet
Gain setting (12,8/20,5/27,5/29 dB)
Dimmable LED front light
EXTENDED 2 YEARS FULL WARRANTY
The Apollon Audio PNC1200 monoblock amplifier comes with a 2 Years Full Warranty. We are using only highest quality components and materials to build our Apollon Audio PNC2k amplifier based on the Hypex NC2k modules. This selection by itself is a guarantee that the final product will stand the test of time and everyday use. Each PNC2k amplifier is handbuilt with highest precision and care so we proudly stand behind our product and offer you a Full 2 Years Warranty.
What Our Customers Say:
The Hypex NCx500 is the best investment I've made for my home studio. It elevated my music production to a whole new level.
I'm blown away by the audio clarity and power of this amplifier. It's like experiencing my favorite music for the first time.
Apollon Audio's customer service is top-notch. They helped me choose the perfect amplifier for my home theater setup.
Absolutely blown away by the sound quality! I'm a professional musician, and these amplifiers exceeded my expectations.
The perfect addition to my home theater system. Crisp, clear sound in a sleek design.
Great customer service and prompt delivery. Highly recommended!
The amp sounds amazing. Everything you said about the amp is true. Super accurate, super precise and fast. I rediscovered my NS10s
I’ve had the amp for about a week and a half now and I’m enjoying it quite a bit. It’s opening up nicely and the depth and detail are excellent. I’ve had to adjust my subs (dual Rythmik F15s) down a bit because, I believe, my Tylers are now being driven more to their potential. Excited to hear if things open up even more. Very happy so far with my purchase. Thanks again!
Elevate Your Audio Experience Today!
Experience Audio Perfection Today!
Select your desired color and simply click add to cart.
The prices displayed exclude the EU VAT and will be added at checkout if you are located in the EU. Estimated lead time is 14 working days for stereo amplifiers/monoblocks.
We ship worldwide – simply click “Add to Cart” or “Checkout with Paypal” choose your country and enter your City and valid ZIP/Postal code to calculate the shipping costs.
DOWNLOAD REFERENCE MANUAL:
